Description

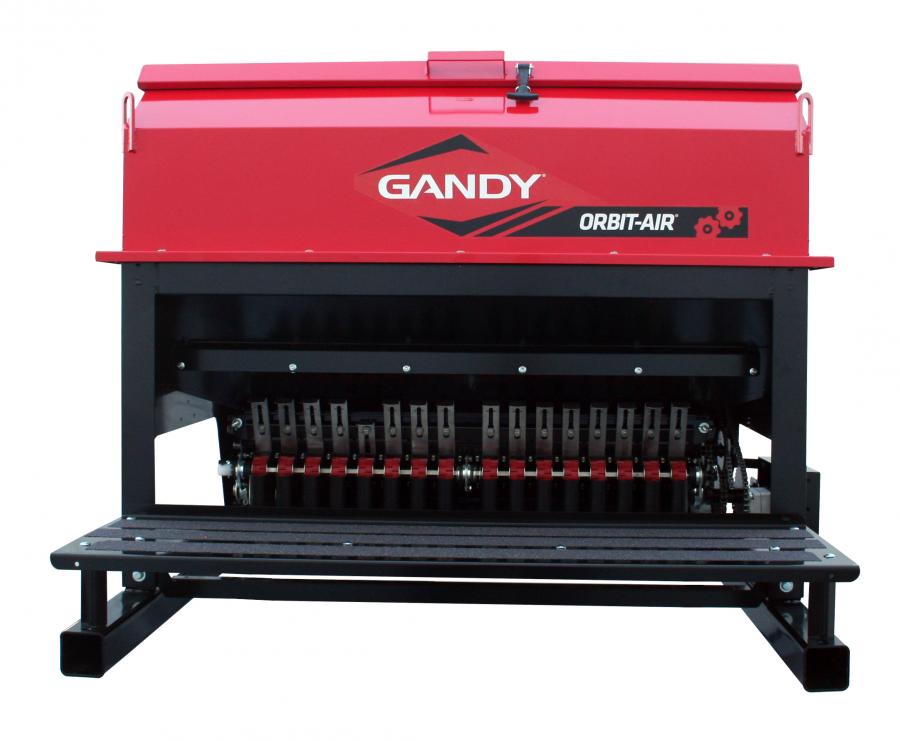

planter air clutches 23 cu ft 16-Outlet with Single Shaft, Single Clutch with Red Metering Wheels for Cover Crop & Fertilizer (Model 622316F)23 cu. ft., (approx. 18. 4 bushels) 1,035 lb. granular chemical capacity 1,380 lb. granular fertilizer capacity 16 outlets, single shaft, no clutch Ground drive wheel sold separately to provide speed compensated rates. Operator may connect Zero Max rate controller to any live shaft on the parent implement with a constant RPM through a series of sprockets and jack shafts. Metering Wheels Red for small to medium seeds such as cereal rye, wheat, oats,
- 23 cu. ft., (approx. 18.4 bushels)
- 1,035 lb. granular chemical capacity
- 1,380 lb. granular fertilizer capacity
- 16-outlets, single shaft, no clutch
- Ground drive wheel sold separately to provide speed compensated rates. Operator may connect Zero-Max rate controller to any live shaft on the parent implement with a constant RPM through a series of sprockets and jack shafts.
- Metering Wheels
- Red for small to medium seeds such as cereal rye, wheat, oats, barley, etc. & Granular Fertilizer (Installed)
- Black for small seeds such as annual rye, tillage radish, canola & alfalfa, etc. & Granular Chemical (Included)
- White for soybeans and field peas (Purchased Separately)
- Yellow - High Volume(Purchased Separately)
- Hydraulic blower driven by a 3-port, 8-GPM hydraulic blower motor producing 8-20 oz. of air pressure
- 10-ft. of hydraulic hose is supplied for input and outlet ports - user to supply additional hydraulic hose and couplers
- Zero-Max rate controller is mounted to hopper with convenient dial indicator to set rates.
- In-cab control box monitors shaft to indicate metering wheels are rotating and warn if loss of air pressure.
- Maximum broadcast width of 40 feet at deflector spacing not exceeding 30".
- Unit comes mounted to a 3" x 3" square steel tubular mounting frame - operator may need to provide additional tubing, brackets, etc., to clear cylinders, leveling bars, etc., when attaching to parent implement.
- Hopper extension is available to add 8.5 cu ft (6.8 bushels) of capacity.
- Weather-tight cover and latches.
